INSULATION RESISTANCE TEST

The Insulation Resistance Test is the second test required by the electrical safety testing standards.

The Insulation Resistance Test consists in measuring the Insulation resistance of a device under test, while phase and neutral are short circuited together. The measured resistance has to be higher than the indicated limit from the international standards.

A megohmmeter (also called insulation resistance tester, teraohmmeter) is then used to measure the ohmic value of an insulator under a direct voltage of great stability.

To measure a high value resistance, techniques for measuring a low value current are used. A constant voltage source is applied to the resistance to be measured and the resulting current is read on a highly sensitive ammeter circuit that can display the resistance value.

INSULATION TEST

Its objective is to measure the ohmmic value of the insulation under a direct voltage of great stability, generally 50, 100, 250, 500, or 1000 VDC. The ohmmic value of the insulation resistance is expressed in megohms (MΩ). To conform to specific standards, the insulation resistance test can be performed under voltages up to 1500VDC. Due to the stability of the voltage source, it is possible to adjust the test voltage by steps of 1 volt.

The stability of the voltage is critical; a non regulated voltage will drop sharply in presence of a bad insulation which will cause an erroneous measurement.

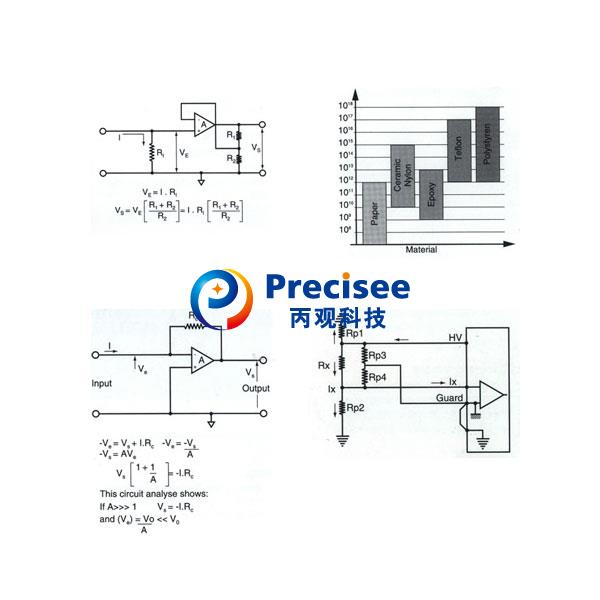

SHUNT AMMETER CIRCUIT

The voltmeter input, associated to a resistance, forms the shunt ammeter circuit. This setting allows measuring any value of I, many combinations of sensitivity and values of RI.

This circuit is used for current measurement of high values which correspond to resistance measurement of low values (l x l04 Ω to 2.106 Ω).

FEEDBACK AMMETER CIRCUIT

This circuit is the one mostly used on our instruments. It covers the resistance measurement of high values higher than 2.106 Ω. The principle is indicated in the hereunder diagram.

The input current flows through the feedback Rc.

The low level of offset current of  the amplifier negligeably affects

the current l.

HIGH VALUE RESISTANCE MEASUREMENT
Using a constant voltage source offers the advantage of defining with accuracy the value of voltage used for the measurement. The choice of this voltage is an important parameter.

Indeed the value of a high resistance depends of the voltage applied to it. Other factors intervene in the high value resistance measurement. Temperature and relative humidity are two important parameters which influence the resistance value of an insulator. We offer on the latest Sefelec model the measurement of these two physical parameters (M1501P). 0n the following table one can find the approximative resistance value of insulating materials.

GUARD CIRCUIT
In order to minimize leakage currents, we offer a guard connection. The guard circuit allows to reduce interferences on the test sample. A terminal accessible on the front panel of our instruments allows the measurement of one of the resistance of a Delta configuration (i.e. a cable with two conductors and its external shielding), so that the result is not affected by the presence of the other two shunt resistances.

* To this effect the guard terminal is close to the potential of the measuring input of the instrument.

* The value of Rx, will be defined with great accuracy if the current lx, measured by the megohmmeter's input, is really the current flowing through Rx.

* Rp1 : symbolizes the leakage between the high voltage (HV) connections and ground.

* Rp3 - Rp4 : represent the parallel leakage of Rx. If the middle point Rp2-Rp4 is connected to the guard, these leakages will not influence the measurement of Rx.

* Rp2 : has not influence if the guard is connected to earth.

绝缘测试标准要求

测试目的：检测绝缘电阻和材料质量

测试方法：加载一个连续的电压，测试电流值，得出电阻值

推荐型号：1000-M 56-D  506-D  56-S  506-S
